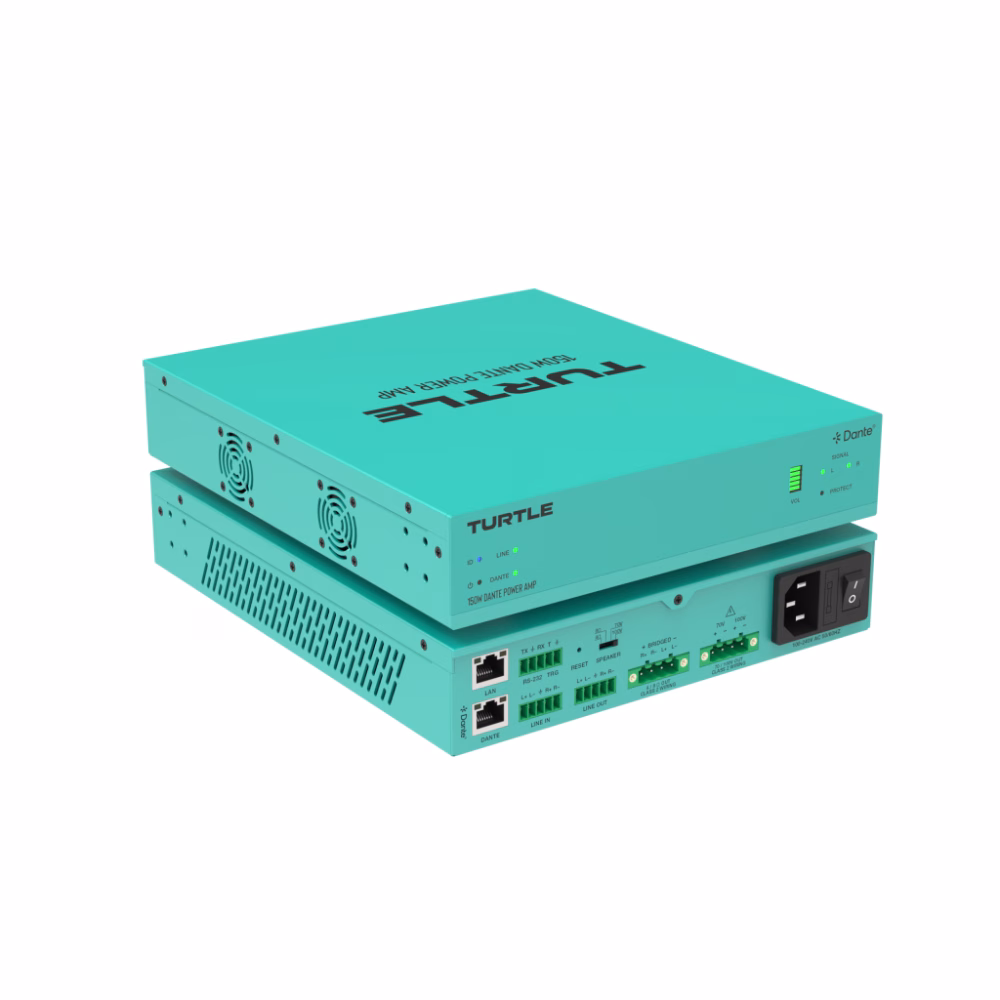

Dante Power Amp 150

Dante Power Amp 150

This two-channel Class D amplifier delivers exceptional audio performance and flexibility for any AV installation. Supporting low impedance (4Ω/8Ω) stereo systems with 2 x 75W output or bridged constant voltage (70V/100V) systems at 150W, it adapts effortlessly to various speaker setups. Featuring Dante 2CH digital I/O, balanced or unbalanced analog I/O, built-in DSP, and flexible control options, it’s the perfect solution for installations that demand reliability and precision.

Login to See Price
Whatsapp
CategorySpecification
Product NameTurtle AV Dante Power Amp 150
Amplifier TypeClass D
Output Power (Lo-Z, stereo)2 × 75 W @ 4 Ω/8 Ω
Output Power (Hi-Z, bridged)1 × 150 W @ 70 V/100 V
Maximum Voltage Gain27–30 dB (single-ended) / 39–42 dB (bridged)
Frequency Response20 Hz – 20 kHz (±3 dB)
Signal-to-Noise Ratio87 dB (20 Hz – 10 kHz)
THD+N0.04% (1 kHz @ 1 W)
Digital Audio FormatDante® 2 × 2 in/out, PCM 2ch, 44.1–96 kHz, 16/24-bit
Analog Line InputBalanced stereo 0 dBu / 10 kΩ input sensitivity
Analog Line OutputBalanced stereo max 2 V RMS
Speaker Output (Lo-Z)4/8 Ω AMP OUT (balanced)
Speaker Output (Hi-Z)70 V/100 V AMP OUT (unbalanced)
Control OptionsRS-232, Web GUI, Trigger (5-12 V)
ESD Protection±8 kV (air discharge) / ±4 kV (contact discharge)
Connections (Inputs)1 × LINE IN (Phoenix 5-pin) 1 × Dante (RJ-45)
Connections (Outputs)1 × LINE OUT (Phoenix 5-pin) 1 × 4/8 Ω AMP OUT (MSTB Phoenix 4-pin) 1 × 70/100 V AMP OUT (MSTB Phoenix 4-pin)
Mechanical / HousingMetal enclosure; Colour – “Turtle Aqua”
Dimensions (W × D × H)240 mm × 210 mm × 44 mm
Weight1.88 kg
Power SupplyAC 100–240 V, 50/60 Hz
Power Consumption75 W typical
Operating Temperature–20 °C to +60 °C
Relative Humidity20% – 90% RH (non-condensing)

Description

The Dante Power Amp 150 is a professional-grade, two-channel Class D amplifier designed for modern AV installations. It offers up to 2 × 75 W output for low-impedance (4 Ω/8 Ω) stereo systems, or up to 150 W in bridged mode for constant-voltage systems (70 V or 100 V).
Featuring integrated digital audio networking via Dante® (2-channel digital I/O) plus balanced/unbalanced analog I/O, the unit supports seamless integration into Dante-based audio networks. With built-in DSP (input gain, output EQ, delay, presets), control via RS-232/WEB, and selectable Lo-Z/Hi-Z modes, it adapts effortlessly to diverse speaker configurations and installation requirements.
Housed in a durable metal chassis with compact half-rack form-factor, it’s ideal for boardrooms, classrooms, worship spaces, retail, or any installation where reliability, network integration and audio flexibility matter.

Turtle AV is a proudly Australian electronics manufacturer, based out of Melbourne.
