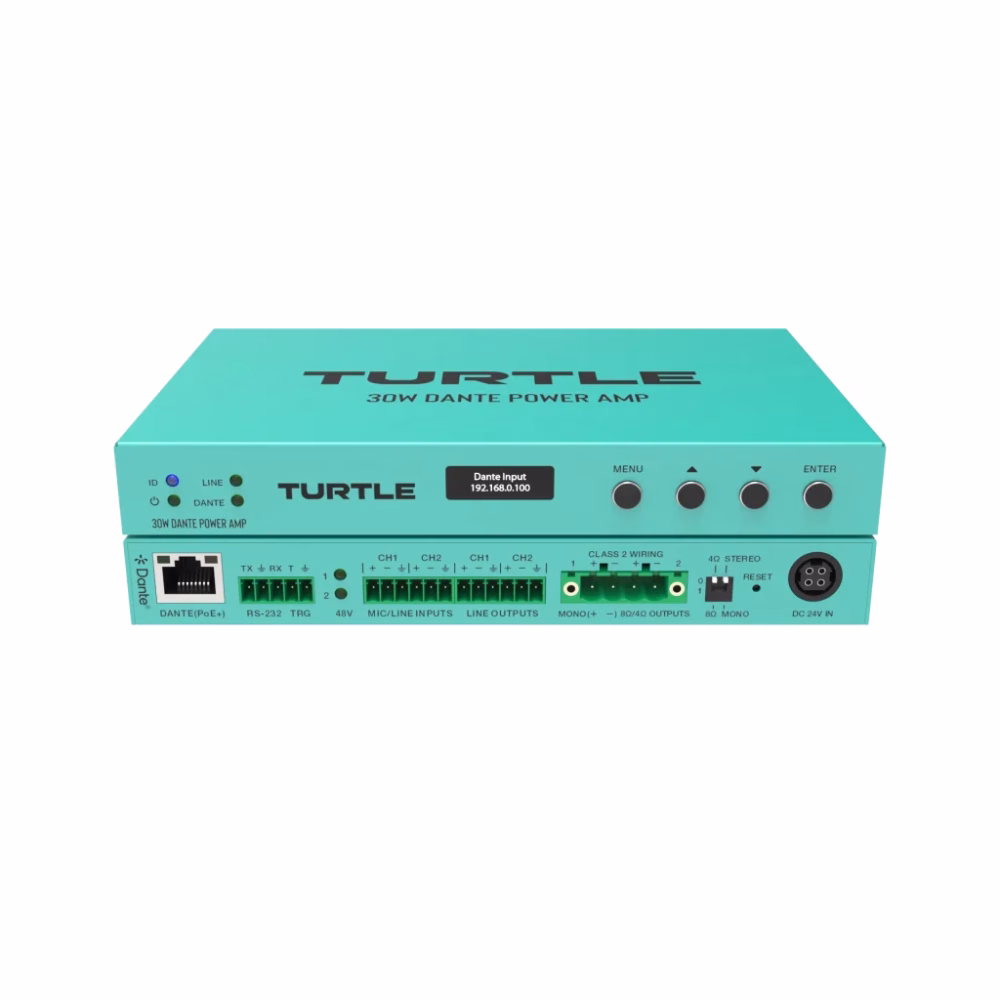

Dante Power Amp 30

Dante Power Amp 30

This compact amp acts as a full Dante audio bridge and powers two passive speakers at 15 watts per channel. Convert axnalog to Dante, Dante to analog, or do both at once.

Plenum rated and powered by PoE+ or 12V DC. Includes balanced or unbalanced analog I/O, 2 channel digital I/O, and 48kHz 24-bit audio conversion. The integrated DSP gives you gain, EQ, and volume control, all accessible through the WebUI or open API.

Login to See Price
Whatsapp
CategorySpecification
Product NameTurtle AV Dante Power Amp 30
Amplifier TypeClass D
Output Power2 × 15 W @ 4/8 Ω (stereo) / 1 × 30 W @ 4/8 Ω (bridged mono)
Analog InputsBalanced/unbalanced Mic In (min –35 dBV) / Line In (max +24 dBu)
Analog OutputsBalanced/unbalanced Line Out (max 2 V RMS)
Input Impedance20 kΩ (balanced) / 10 kΩ (unbalanced)
Output Impedance600 Ω (balanced) / 300 Ω (unbalanced)
Frequency Response20 Hz – 20 kHz (± 0.5 dB)
Signal-to-Noise Ratio> 100 dB (A-weighted)
THD + N< 0.01 % at +4 dBu, 1 kHz
Digital Audio FormatDante / AES67 (2 channels, 44.1–96 kHz, 16/24-bit)
Network Ports1 × Dante Primary (RJ-45 PoE+) + 1 × Dante Secondary (RJ-45 PoE+)
Network Bandwidth100 Mb/s Ethernet
Configurable Latency (Dante)2 ms / 3 ms / 4 ms / 5 ms / 10 ms
Configurable Delay (AMP Output)0 – 50 ms
DSP FunctionsInput gain, EQ, delay, volume control, preset storage
Power OptionsPoE+ (IEEE 802.3at Class 4) / 12 V DC input
Power ConsumptionApprox. 39 W (max)
ChassisMetal, plenum-rated, fanless design
Dimensions (W × D × H)180 mm × 118 mm × 23 mm
WeightApprox. 0.7 kg (1.5 lb)
Operating Temperature0 °C – 40 °C (32 °F – 104 °F)
Humidity20 % – 90 % (non-condensing)
ESD Protection± 8 kV (air) / ± 4 kV (contact)

Description

The Turtle AV Dante Power Amp 30 is a compact, plenum-rated power amplifier that seamlessly integrates Dante® Audio-over-IP networking with professional analog amplification. Delivering up to 2 × 15 W stereo or 1 × 30 W bridged mono output, this Class-D amplifier provides reliable, high-fidelity sound for conference rooms, classrooms, and other fixed installations.

It combines amplification, Dante digital I/O, and analog connectivity in one unit, reducing system complexity and installation time. Supporting PoE+ (IEEE 802.3at) or 12 V DC power, the device can be installed in ceilings, walls, or racks without external power supplies, making it ideal for modern AV infrastructures.

Built-in DSP provides EQ, gain, delay, and volume control, easily managed via a web interface or open API. With its low noise, low distortion, and network redundancy, the Dante Power Amp 30 offers exceptional flexibility for integrators and installers.

Key Features

  • 2 × 15 W @ 4/8 Ω stereo or 1 × 30 W @ 4/8 Ω bridged mono

  • Full Dante® and AES67 compliant digital audio I/O

  • Balanced/unbalanced analog inputs and outputs

  • Built-in DSP (EQ, gain, delay, volume) with web configuration

  • Plenum-rated metal chassis for ceiling/air-space installation

  • Power options: PoE+ (Class 4) or 12 V DC

  • Compact, fanless design with silent operation

  • Configurable latency and audio routing through Dante Controller

Turtle AV is a proudly Australian electronics manufacturer, based out of Melbourne.
