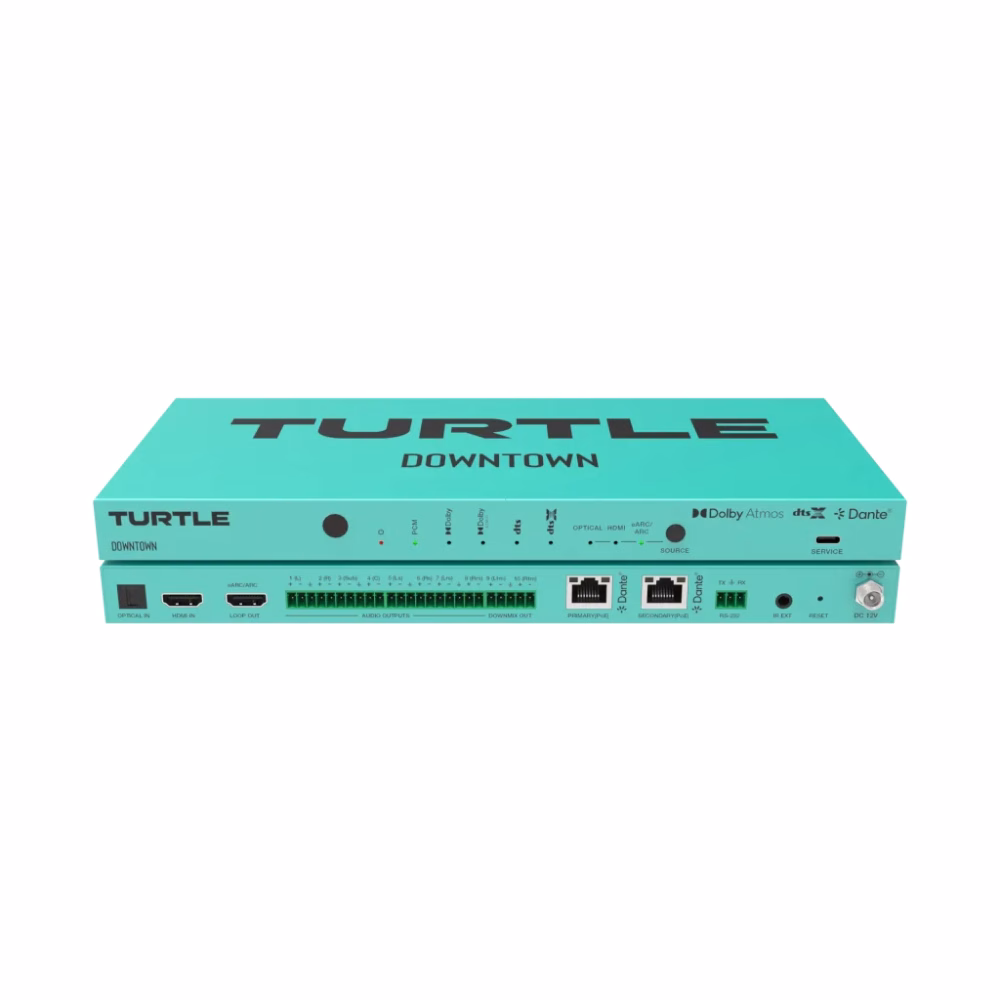

Downtown Dolby Atmos to Dante Audio Encoder

Downtown Dolby Atmos to Dante Audio Encoder

DOWNTOWN brings Dolby Atmos and DTS to Dante, supporting Dolby Digital, DD+, Atmos, DTS:X, and PCM up to 9.1 channels, with each channel appearing as a separate Dante audio stream for flexible routing in Dante Controller. It features PoE redundancy, primary and secondary Dante network failover, a dedicated control network, AES67 support, and full API control, making it ideal for theme parks, theaters, stadiums, and broadcast environments. TAA compliant and backed by a 5-year warranty for complete peace of mind.

Login to See Price
Whatsapp
CategorySpecification
Product NameTurtle AV DOWNTOWN Multichannel Dolby Atmos & DTS-to-Dante Encoder
Audio Format SupportDolby Digital, Dolby Digital Plus (DD+), Dolby Atmos, DTS:X, PCM up to 9.1 channels
Digital Reference OutputDante® / AES67, up to 9 channels PCM (44.1 kHz–96 kHz, 16/24-bit) plus stereo down-mix
Video Input/Pass-throughHDMI 2.1 input (up to 8K@60Hz 4:2:0 10-bit) with loop-out; supports HDR formats (Dolby Vision, HDR10, HDR10+, HLG)
Analog Outputs9-channel line out (balanced/unbalanced) + stereo down-mix output; max ~2 V RMS
Frequency Response20 Hz – 20 kHz (±0.5 dB)
Dynamic Range / SNR>100 dB @ 0 dBu, 1 kHz (A-weighted)
THD + Noise<0.01% @ +4 dBu, 1 kHz
Connectors – Audio/ControlHDMI input, SPDIF optical, line-out (Phoenix 5-pin), RS-232/trigger (Phoenix 5-pin), IR 3.5 mm jack
Network Ports2 × Dante network ports (Primary + Secondary, RJ-45, PoE) + separate control LAN port
Power / RedundancyDual PoE power ports + DC power option (for triple redundancy)
Form Factor1 RU rackmount compatible; metal enclosure; color “Turtle Aqua” (Pantone 3262 C)
Operating EnvironmentTemperature: -20 °C to +60 °C; Humidity: 20%-90% RH (non-condensing)
Compliance & WarrantyTAA compliant; 5-year warranty with advance replacement

Description

The Turtle AV DOWNTOWN is a professional multichannel audio interface that bridges modern immersive audio formats with Dante® Audio-over-IP networks. Supporting Dolby Atmos, Dolby Digital, Dolby Digital Plus (DD+), DTS:X, and PCM up to 9.1 channels, it converts complex surround and object-based sound into discrete Dante and AES67 network channels with pristine fidelity.

Engineered for high-end AV and broadcast installations, DOWNTOWN features HDMI 2.1 input and loop-out for video pass-through up to 8K @ 60 Hz, ensuring full compatibility with today’s premium video and audio systems. It also includes optical SPDIF, ARC/eARC, and a stereo down-mix output, allowing flexible routing to both immersive and legacy systems.

With dual Dante network ports, redundant PoE power, and a dedicated control LAN, the DOWNTOWN guarantees exceptional reliability and system stability in mission-critical applications. Built-in DSP and configurable output management provide precise control for integrators, while its 1 U rackmount chassis fits easily into professional AV environments.

Ideal for theatres, cinemas, stadiums, broadcast studios, and high-end commercial AV systems, the DOWNTOWN delivers next-generation immersive sound with Dante network simplicity.

Key Features

  • Converts Dolby Atmos, Dolby Digital Plus, DTS:X, and PCM to Dante/AES67

  • Supports up to 9.1 channels of digital audio

  • HDMI 2.1 input and loop-through (8K @ 60 Hz, HDR10, Dolby Vision)

  • Dual Dante ports for primary/secondary network redundancy

  • Dual PoE power + DC power option for triple redundancy

  • Stereo down-mix output for compatibility with legacy zones

  • Web-based configuration and firmware management

  • Rackmount 1 U metal chassis, silent fanless operation

  • TAA-compliant, backed by a 5-year warranty

Turtle AV is a proudly Australian electronics manufacturer, based out of Melbourne.
